Description

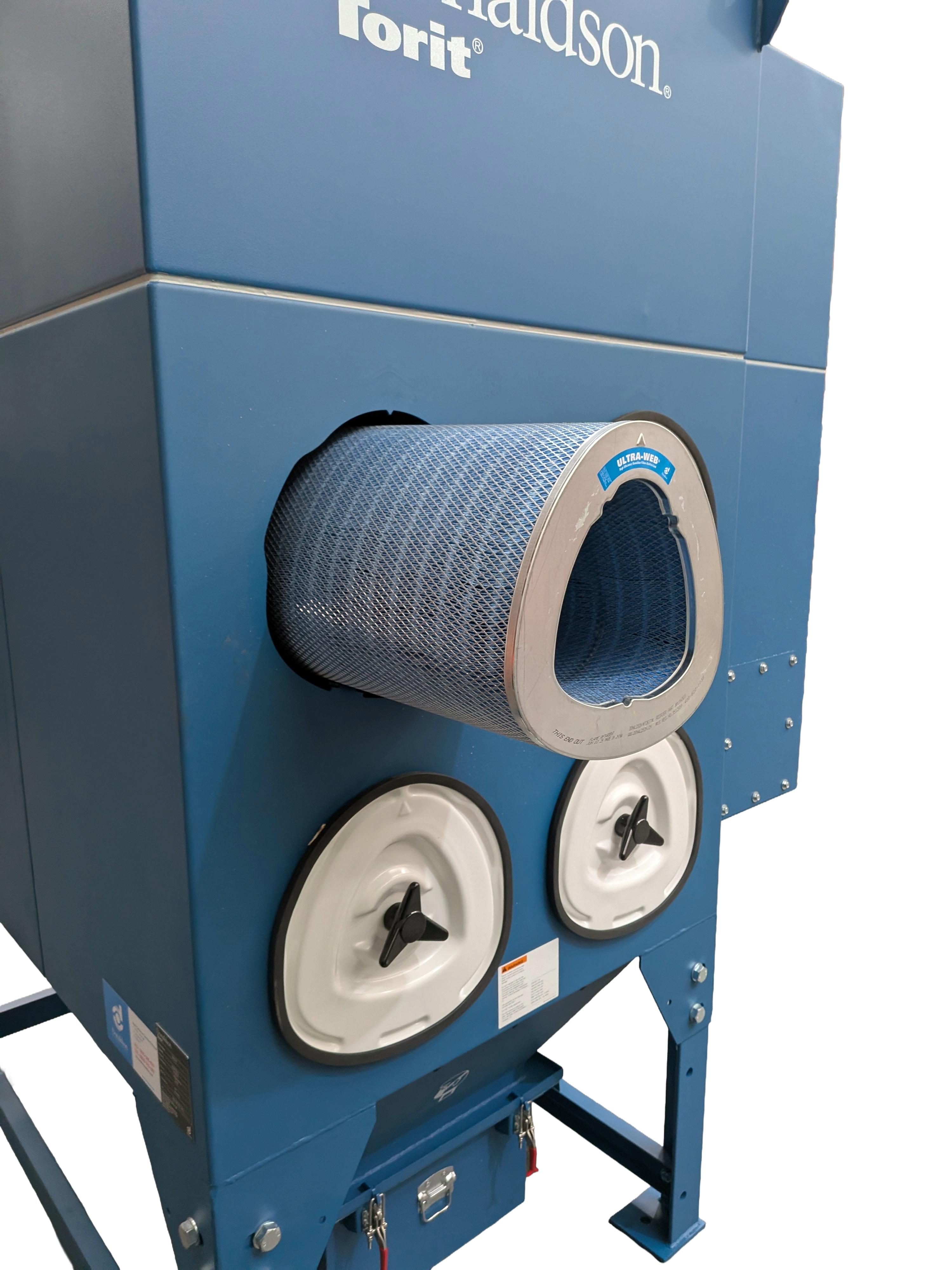

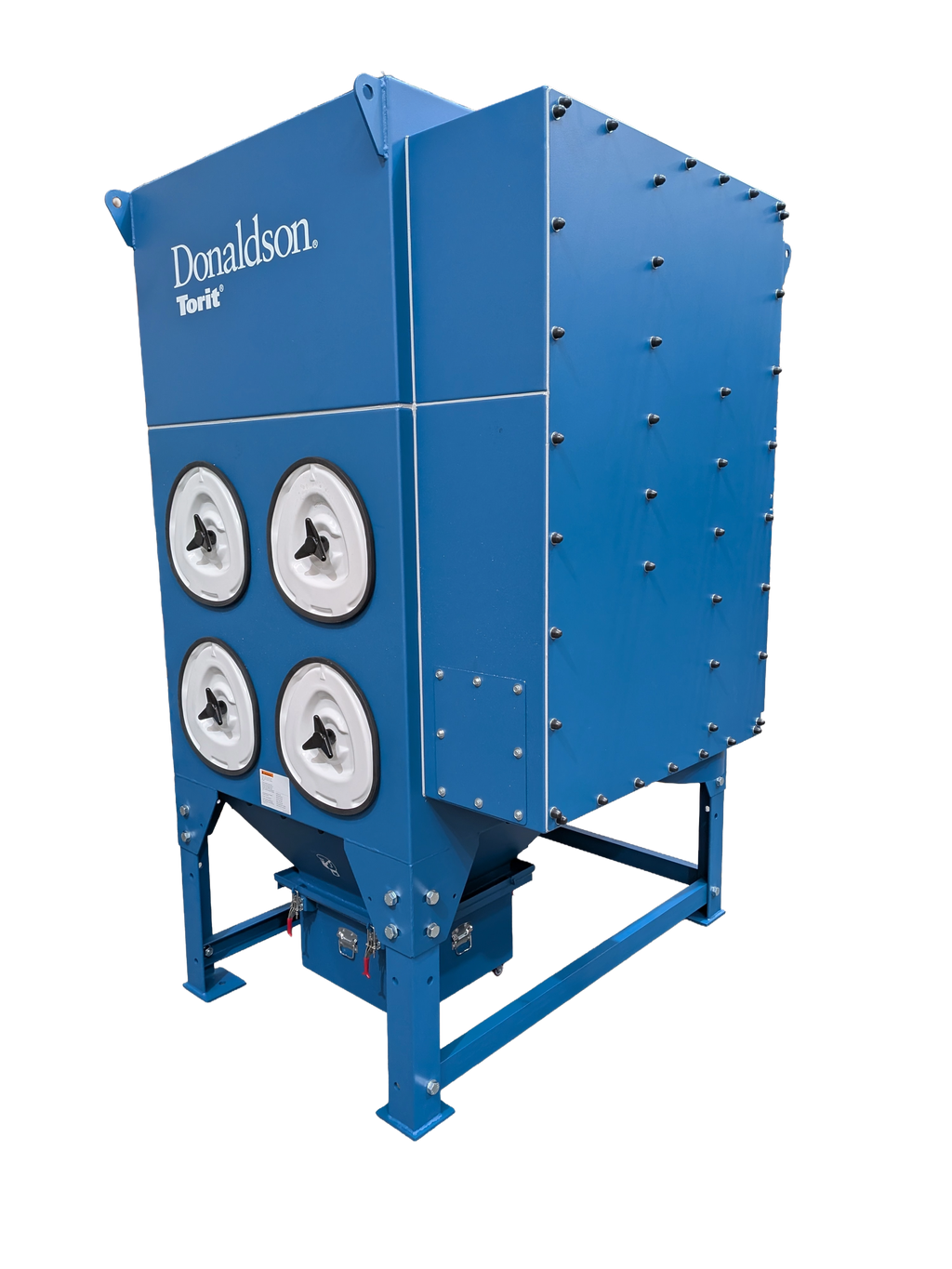

Donaldson® DFEI-4 AS (Australian Standard) 7.5KW
The Donaldson DFEI4 7.5kW Dust collector is well suited to a 3000x1500 to 4000x2000 flat bed or tube laser cutting machine.

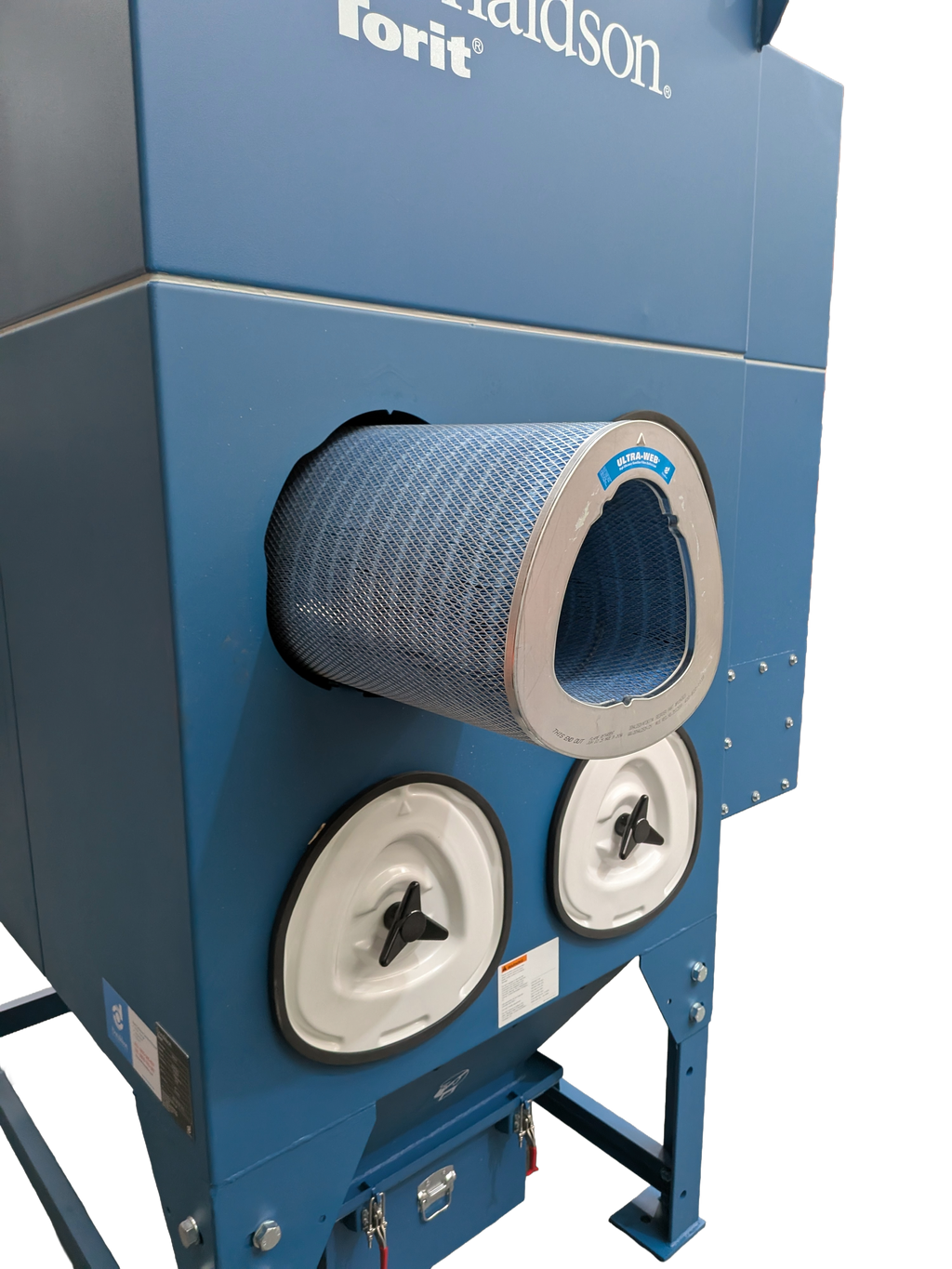

DFEI Dust Collectors are equipped with Ultra-Web® filtration technology. UltraWeb fine fiber media uses a layer of fibers 0.2 to 0.3 microns in diameter to capture contaminants on the surface of the media to capture sub-micron contaminants. The resulting dust cake is easily cleaned off during the automated collector cleaning cycles, ensuring cleaner air for longer.
DFEI Dust Collectors can be used for nuisance and process dust and fume control, providing:
• Small, High Efficiency, Plug-and-Play design
suitable for continuous operation.
• Packaged and compact design for small footprint,
easy and economical installation
• Down Flow Design and traingular Ultra-Web® FR
Cartridge Filters with superior filtration efficiency
and pulse cleaning.
• Clamping-style dust bin for easy clearing.
• Delta P -C01 Controller with a variety of Cleaning
options and connectivity with other equipment
Welding fume extraction, fume arms available
Standard Features and Available Options:
• Torit®Ultra-Web® Flame Retardant (FR)
Cartridge Filters
• Integrated fan pack
• Optional SparkTrap
• Torit Delta P -C01
Applications:
• Laser Cutting
• Plasma Cutting
• Metal Welding
• Others

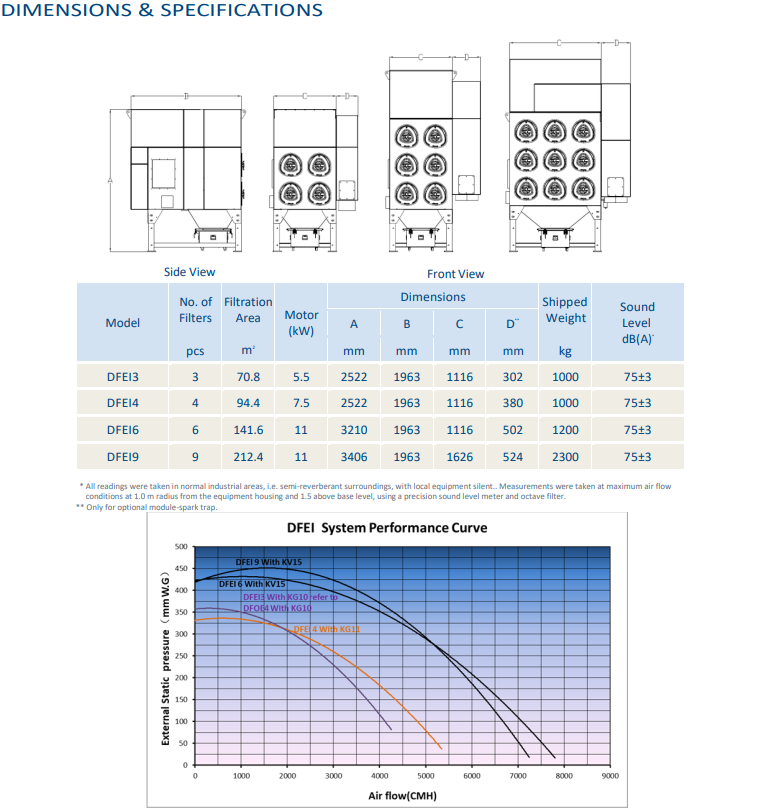

Download datasheet here
Freight available Australia wide, shipping EX Wyong NSW
Need filters? see compatible filters here
