Kimla Technical Specifications

Machine Data

Laser model finecut Flashcut Powercut Extremecut
Laser power up to 2kW up to 4kW up to 8kW up to 12kW
Working area (mm) 1000 x 2000
1500 x 3000
1000 x 2000
1500 x 3000
2000 x 4000
1000 x 2000
1500 x 3000
2000 x 4000
2000 x 6000
2000 x 8000
2000 x 10000
2500 x 3000
2500 x 6000
2500 x 8000
2500 x 12000
1000 x 2000
1500 x 3000
2000 x 4000
2000 x 6000
2000 x 8000
2000 x 10000
2500 x 3000
2500 x 6000
2500 x 8000
2500 x 12000
Z axis range 100 mm 100 mm 100 mm 100 mm
Linear drives Yes Yes yes (HP) yes (HP)
Automatic pallet changer no Yes Yes Yes
Laser safety barriers no Yes Yes Yes
Door on each side of the laser Yes Yes Yes Yes
Dust collector with Ultraweb filters no Yes Yes Yes
Variable head focus (zoom) no optional Yes Yes
Carbon composite beam no no no Yes
Control and software
CAD / CAM / NEST / CNC control system Yes Yes Yes Yes
Nesting with production management optional 1 position 1 position 2 positions
Connection to the ERP system no optional Yes Yes
Cutting out on the fly (flycut) optional Yes Yes Yes



Additional Equipment Options

Ink Printer option for fiber laser cutting machine

  Ink printer

The automatically lowered marking head allows for quick signing of sheets before cutting them, thanks to which subsequent identification of details automatically distributed on the sheet by integrated nesting is not a problem. The print head marks the details using ink, which can be easily cleaned later without leaving any trace after marking.

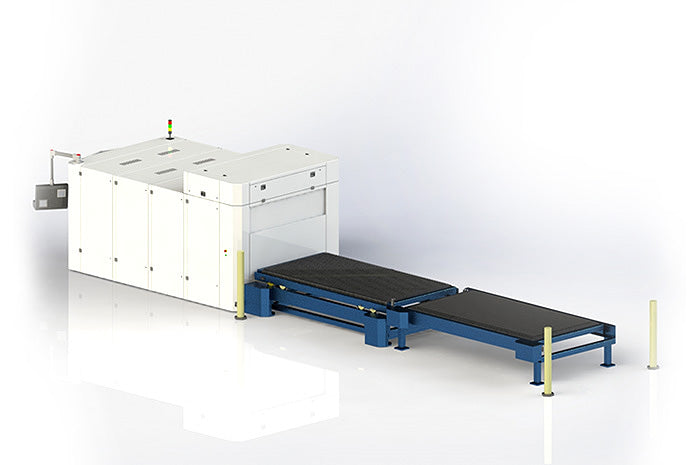

Third pallet changer option High Dynamic Fiber laser cutting machine

 Third Material Table

The innovative, proprietary three-pallet system provides the possibility of using high-speed fiber lasers without unnecessary waste of time for handling cut materials. During the laser operation, the operator has the option, in addition to the automated cycle of reloading cut sheet metal, also manually loading and unloading elements from the third pallet. The optional loading and unloading system can be integrated with both the central part of the changer and the last pallet. Compared to a two-pallet system, the three-pallet changer integrated with the loading and unloading system enables even more flexible and more efficient operation of the entire laser cutting socket.

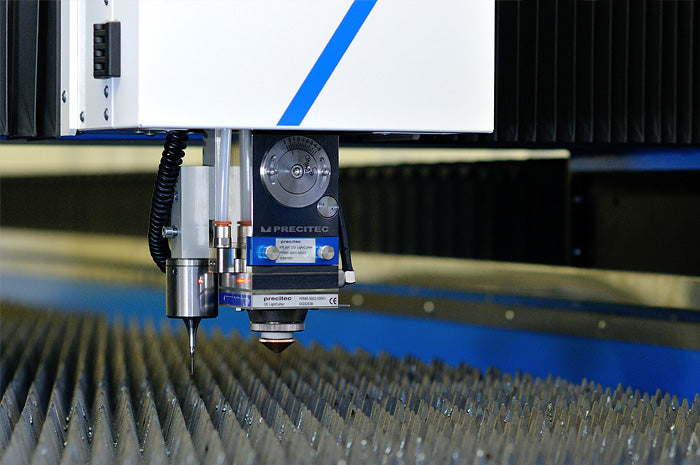

 Touch Scanner reproduction coordinate measuring rapid prototyping reeeingineering Touch scanner

The touch scanning head is used, among others, to scan details to make duplicates or to enter into computer memory for further processing. The optional scanning head is an irreplaceable machine equipment for more demanding projects. The probe placed on the laser gate will automatically scan the finished part and duplicate it, which will significantly reduce the time it takes to prepare the project. This scanner is simply irreplaceable when duplicating projects of very complex shapes.

Automatic material loading and unloading raw material storage compact server

 Automatic loading and unloading system

Automated Kimla Storesystem loading and unloading system. The Storesystem device was created to maximize the efficiency of laser cutters. The Storesystem construction consists of a rack in which sheets of metal are stored, a system that takes the sheet from the warehouse and transports it to the cutting table and a system that collects cut elements and puts it on selected shelves on the rack. The compact design of the Kimla Storesystem allows for expansion with further storage racks. Storesystem in conjunction with the Kimla laser works automatically, eliminating the need for human work when loading sheets and unloading cut elements. During the laser operation, the operator can quickly and conveniently control the system and optimize material flow.

 Automatic nozzle changer  Automatic Nozzle Changer

Functionality allows for even more automated cutting process on a fiber laser. The drawer placed inside the housing of the laser cutter contains sockets for twelve nozzles, as well as a special brush that can automatically clean them during replacement.

Tube laser attachment tube laser cutter Pipe cutting attachment

A special type of pallet used in the Kimla fiber laser with an additional steering axis. It allows you to cut shapes and cut pipes with diameters up to 200 mm. The maximum pipe length depends on the laser model (with LF1530 it is 3,000 mm). The cut pipe rests freely during the cutting process, without a system of handles that block the possibility of cutting at the ends of the pipe. Thanks to this, it can be cut without unnecessary waste.
