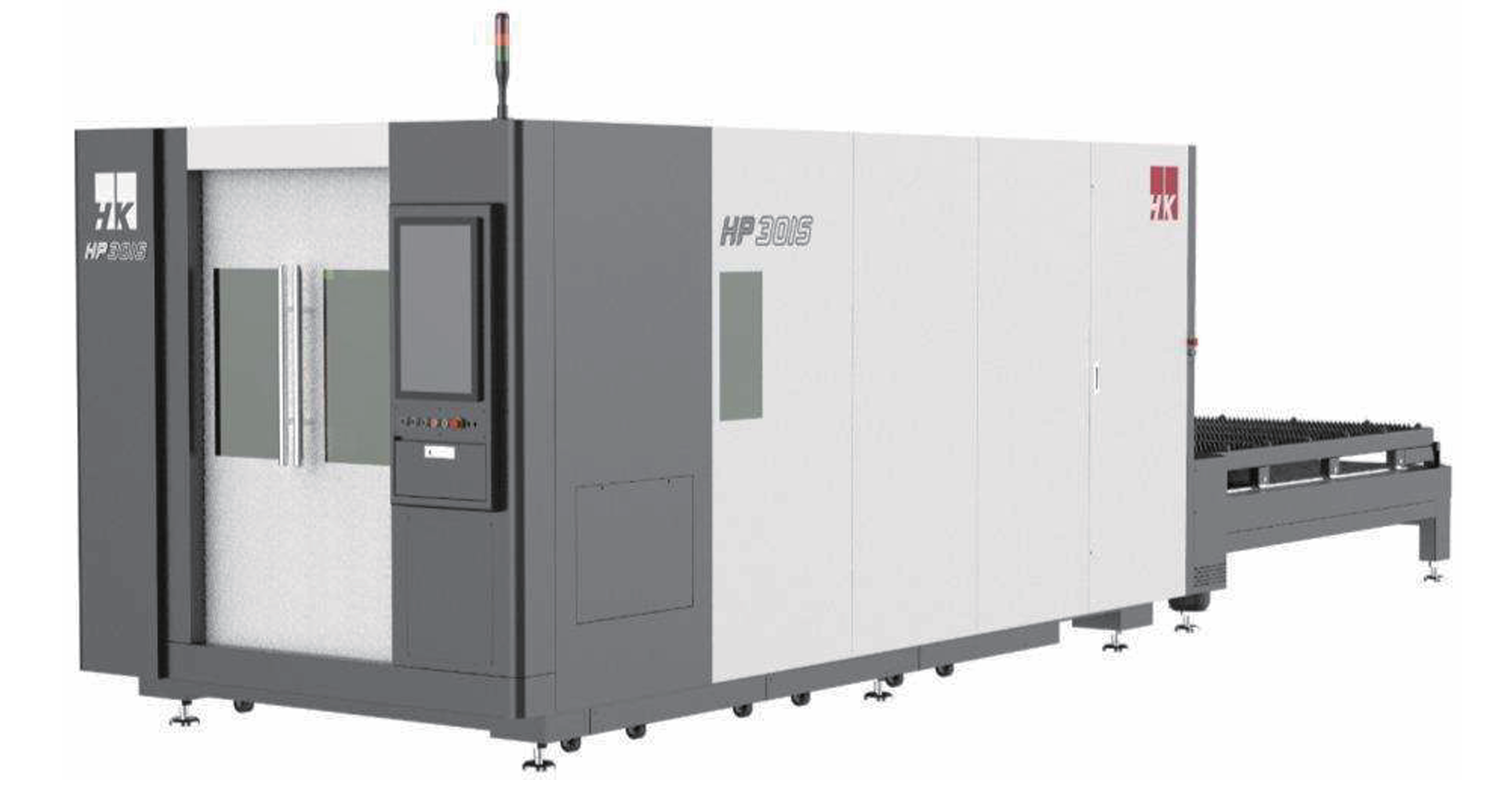

HP 3015 12kW
Whether it’s a new installation or a machine replacement, the wait is over—HK has the answer.
Affordable Yet Powerful: The HP3015 is supported by hk’s 35-year tradition of professional service
Machine configuration
Fiber LASER source
FSCUT 8000 series CNC Controller
Optimised intelligent Fiber cutting head Bochu BLT6 Series
Automatic height sensor unit
Automatic focus control unit
27" Touch Screen operating panel
High pressure programmable assist gas regulator for Nitrogen Oxygen and High Pressure compressed air cutting
Automatic pallet exchange system
CE compliant light barrier system
2 camera monitoring system
Water chiller
Dust collector
Automatic voltage regulator
Scrap trays
Consumables parts kit
Lantek CAD/CAM Software
1 year warranty for machine and laser source

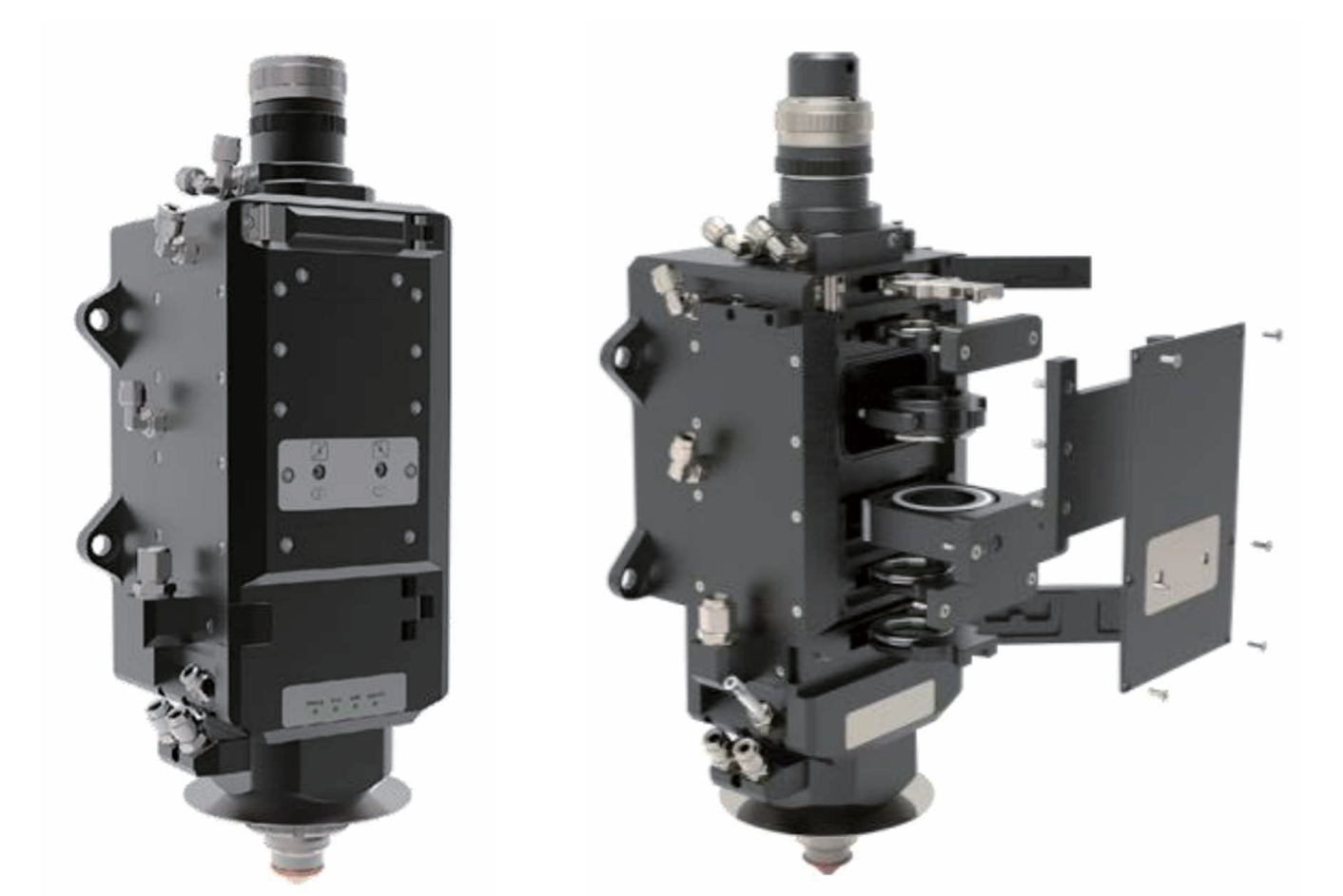

Advanced FIBER cutting head

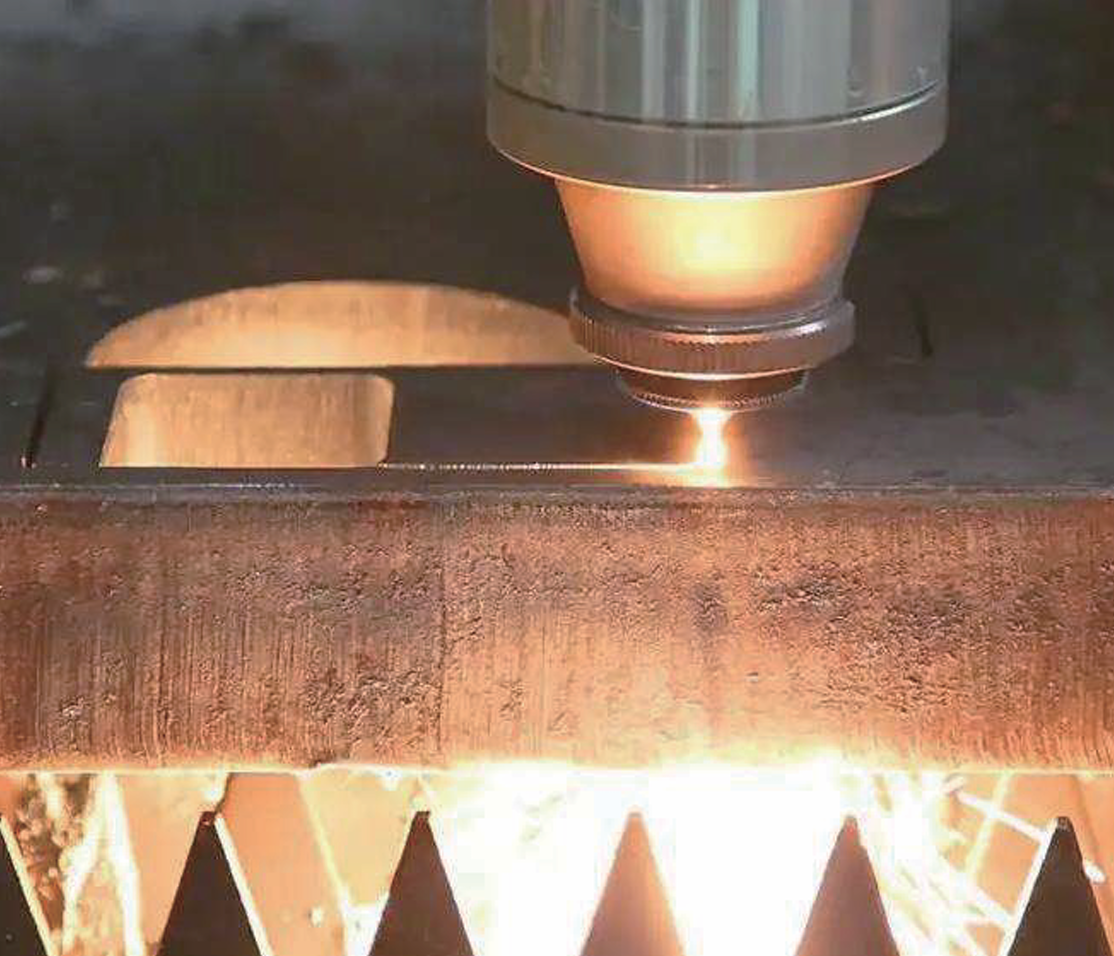

The HK's HP3015 Fiber LASER cutting machine integrates a high-performance cutting head to ensure the highest cut quality standards.
- Brand new beam path design and optical lens
- Motorized focus positioning adjustment for automatic focusing position setup
- Great performance with stable cutting
- Easy installation and setup
- Considerably improved efficiency in compressed air and N2 cutting
- Full optical temperature and leakage monitoring
- Monitoring of protective window installation
- Strict dust proofing for the three protective lenses
- Lenses in independent modules
HP3015
|
SPECIFICATIONS |
HP3015 12kW |
|
Max.workpiece (X * Y) |
3,048 mm * 1,524 mm |
|
Axis Stroke X / Y / Z |
1,530 / 3,050 / 360 mm |
|
Max.acceleration |
1.5G |
|
Max.feed(Simulta’sly X/Y) |
180 m/min |
|
Single Axis Feed |
130 m/min |
|
Positioning Accuracy |
±0.05 mm |
|
Reapeatability Accuracy |
±0.02 mm |
|
Max.material Weight / Machine Weight |
3,000 kg / 6,230 kg |
|
Machine Size(L X W X H) |
8,440 mm x 2,270 mm x 2,340 mm |
|
Phase / Voltage / Frequency |
3phase, 380V, 60Hz |
