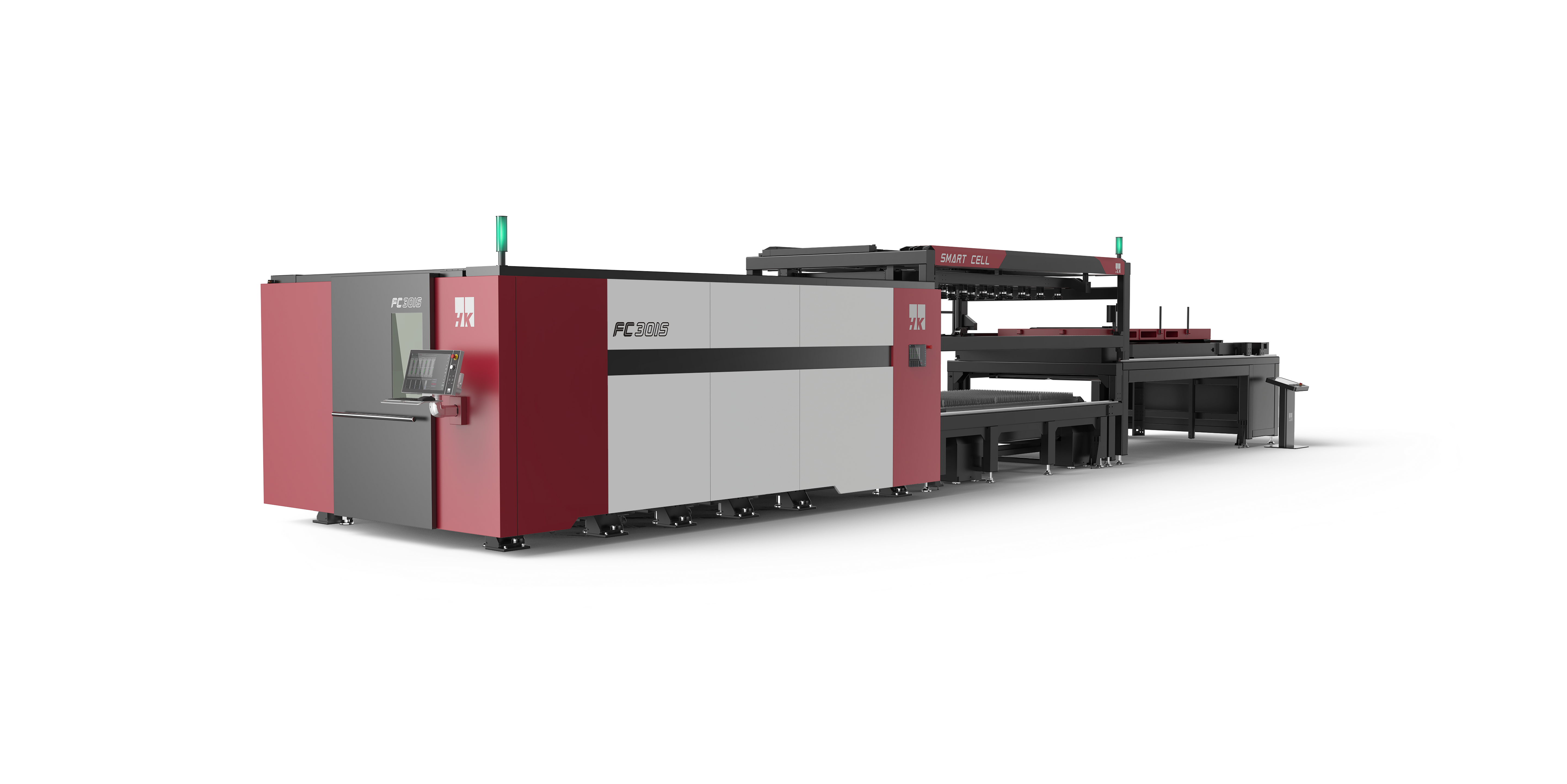

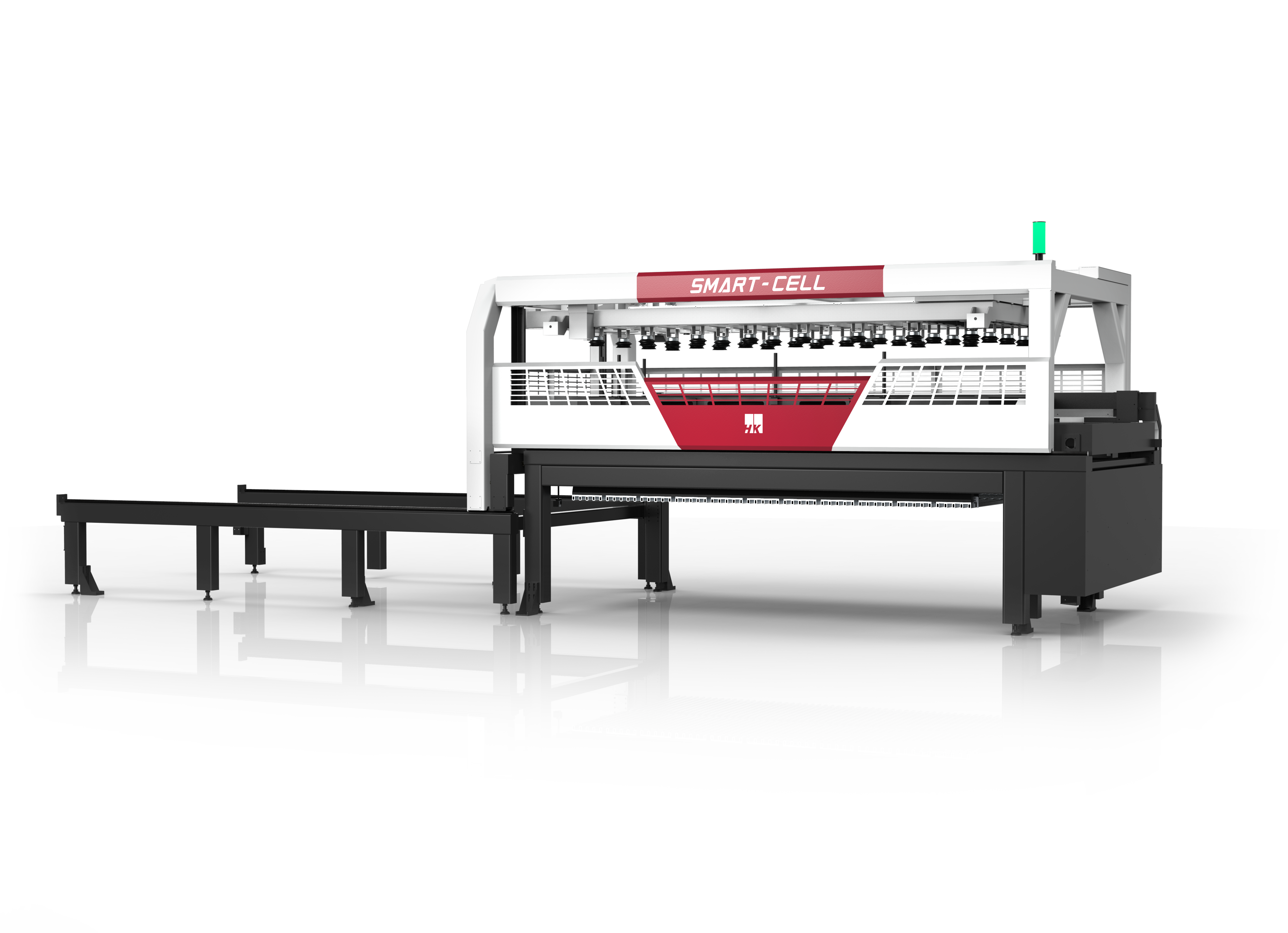

HK Smart Cell

Automatic Loading and Unloading

Maximum material size 1,524 x 3,048 mm

Maximum material thickness 19mm

Maximum loading height 120mm (not including the pallet height)

Material separation Steel plate separation unit (Air Shooting)

Cycle time 60 sec

Loading pallets 2

Unloading pallet 1

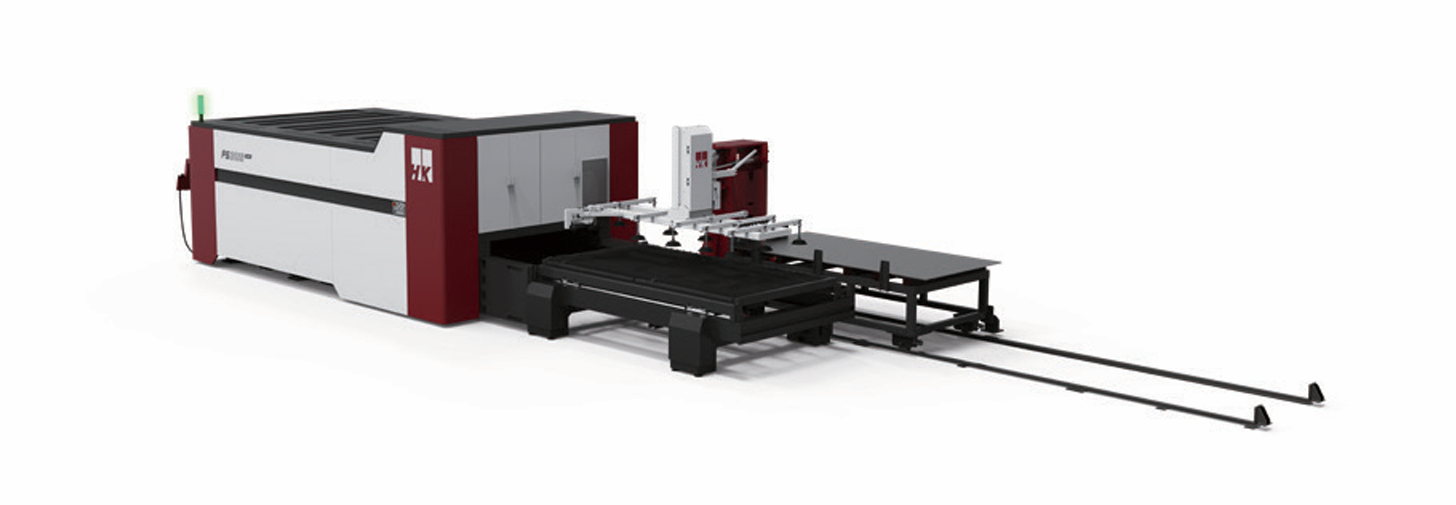

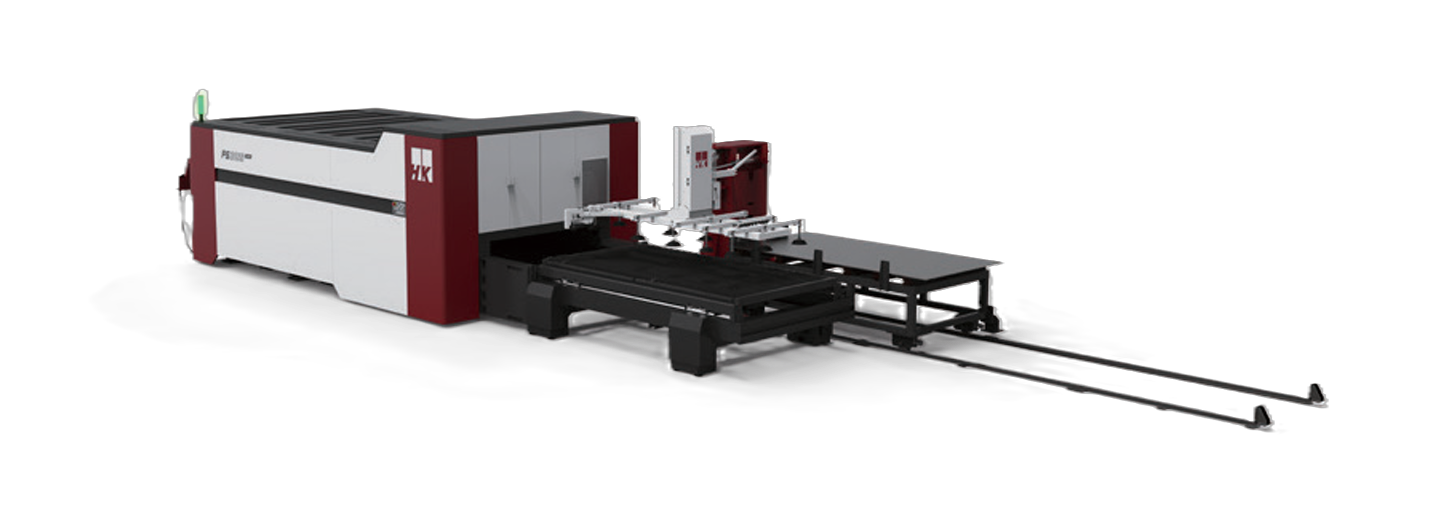

HK Smart Loader

Automatic Loading

Machine size (w X d X h)4,500 X 1,700 X 2,050 mm

Table size (w X d X h)3,115 X 1,620 X 1,037 mm

Maximum material size 1,524 x 3,048 mm

Maximum material thickness 20 mm

Maximum loading height 730 kg

Maximum loading weight per vacuum pad 95 kg

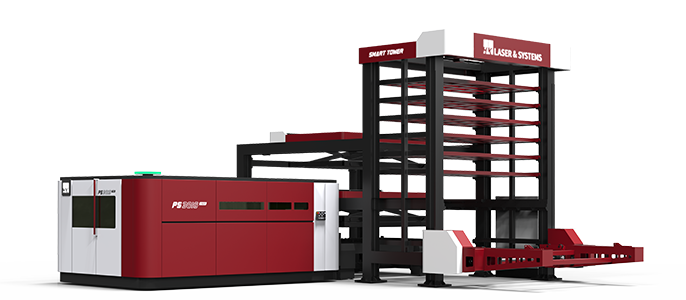

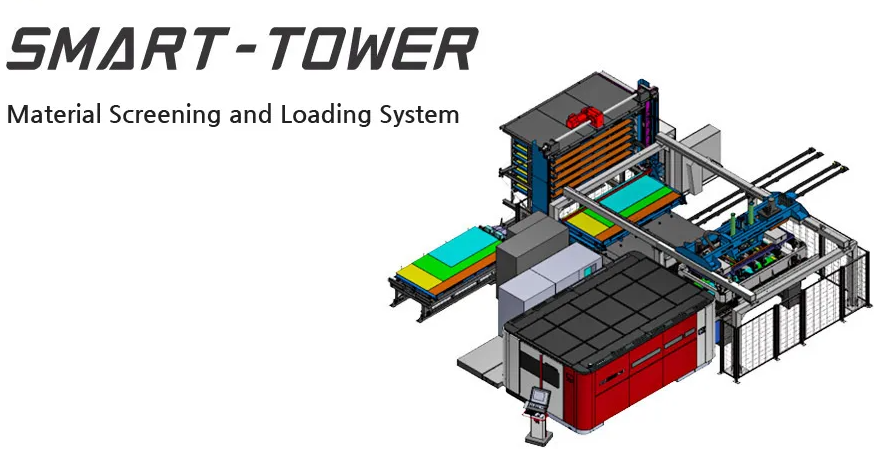

HK Smart Tower

Material Screening ad Loading System

Maximum material size 1,524 x 3,048 mm

Maximum material thickness 20 mm

Standard number of pallet 8(Standard)

Loading weight on each pallet 2,000kg

Loading height on each pallet 90mm

Loading speed 13m/min

Transporting speed 6m/min

Table switching time 120sec

Operating time 80 ~ 90sec / 1Cycle
